Technical Architecture

Intuition's architecture consists of three tightly integrated layers that work together to create a high-performance, decentralized knowledge graph. This document provides a technical deep-dive into each layer and how they interconnect.

Architecture Overview​

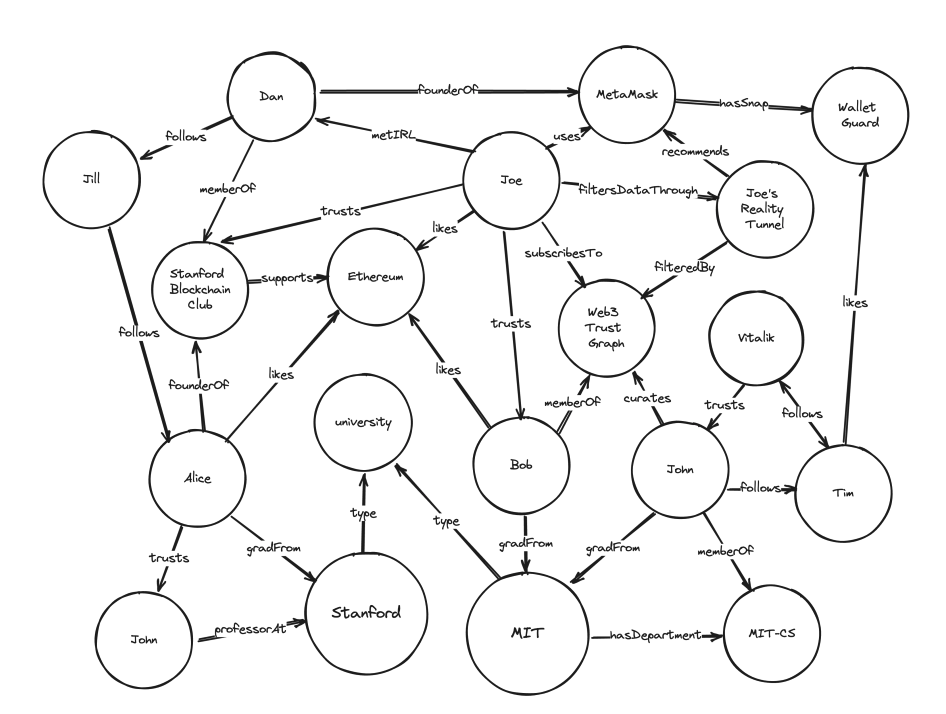

Intuition System Overview

Intuition's architecture is designed for speed, scale, and interoperability. By separating concerns across three specialized layers, we achieve optimal performance while maintaining decentralization and cross-chain compatibility.

Layer 1: Intuition Network (Base L3)​

Overview​

The Intuition Network is an EVM-compatible Layer 3 built on Base using the Orbit stack. This provides the ultra-fast, low-cost transaction environment essential for high-frequency knowledge graph operations.

Why Layer 3?​

Traditional L1s and even L2s are too expensive and slow for the granular operations required by a knowledge graph. Every atom creation, triple attestation, and signal update needs to be economically viable. The L3 architecture provides:

  • Sub-cent transaction costs - Making micro-attestations economically feasible
  • Sub-second finality - Enabling real-time knowledge graph updates
  • Massive throughput - Supporting millions of daily knowledge operations
  • EVM compatibility - Leveraging existing tooling and developer knowledge

Technical Specifications​

Performance

  • Block time: ~250ms
  • Transaction throughput: 10,000+ TPS
  • Finality: < 1 second
  • Gas costs: < $0.001 per tx

Stack Components

  • Base Layer: Orbit framework on Base
  • Consensus: Optimistic rollup with fraud proofs
  • Execution: EVM-compatible runtime
  • Data Availability: Base for settlement

Interoperability

  • Metalayer: Cross-chain messaging protocol
  • Metatoken: Unified token standard
  • Bridge: Native Base ↔ L3 bridge
  • Standards: ERC-1155, ERC-4626, ERC-4337

Cross-Chain Interoperability​

The Network leverages Caldera's Metalayer and Metatoken standards for seamless cross-chain operations:

// Example: Cross-chain atom reference
interface IMetalayerBridge {
    function attestCrossChain(
        uint256 chainId,
        uint256 atomId,
        bytes calldata data
    ) external returns (bytes32 messageId);

    function resolveAtom(
        uint256 chainId,
        uint256 atomId
    ) external view returns (string memory uri);
}

This enables atoms and triples to reference data across any supported chain, creating a truly interoperable knowledge graph.

Layer 2: Intuition Protocol (On-Chain Logic)​

Overview​

The Intuition Protocol implements all on-chain logic for the knowledge graph through a suite of smart contracts. This is where atoms are created, triples are formed, and economic incentives are enforced.

Core Contract Architecture​

EthMultiVault​

The economic engine managing all vault operations:

contract EthMultiVault {
    // Core vault operations
    function deployVault(uint256 atomId) external returns (address vault);
    function deposit(uint256 vaultId, uint256 amount) external;
    function redeem(uint256 vaultId, uint256 shares) external;

    // Bonding curve integration
    function calculatePrice(uint256 supply) public view returns (uint256);
    function calculateShares(uint256 deposit, uint256 totalSupply) external view;
}

Key Features:

  • Automated vault deployment for atoms/triples
  • Dynamic pricing via bonding curves
  • Share-based ownership model
  • Fee distribution to stakers

AtomWallet​

Primary interface for creating and managing knowledge graph primitives:

contract AtomWallet {
    // Atom operations
    function createAtom(string memory uri) external returns (uint256 atomId);

    // Triple operations
    function createTriple(
        uint256 subjectId,
        uint256 predicateId,
        uint256 objectId
    ) external returns (uint256 tripleId);

    // Signal operations
    function depositAtom(uint256 atomId, uint256 amount) external;
    function depositTriple(uint256 tripleId, uint256 amount, bool isPositive) external;
}

Key Features:

  • Gas-efficient batch operations
  • Account abstraction support (ERC-4337)
  • Multi-signature capabilities
  • Upgradeable proxy pattern

Economic Mechanics​

The Protocol implements sophisticated economic incentives:

Bonding Curves

  • Automated price discovery
  • Early adopter rewards
  • Exponential growth model
  • Anti-manipulation mechanics

Fee Distribution

  • Creator fees: 5% of deposits
  • Protocol fees: 2% of deposits
  • Staker rewards: Proportional shares
  • Compound interest mechanics

Vault Mechanics

  • Positive/negative signal vaults
  • Automatic liquidity provision
  • Rage quit protection
  • Time-weighted averaging

State Management​

The Protocol maintains the complete on-chain state of the knowledge graph:

interface OnChainState {
  atoms: Map<number, {
    id: number;
    uri: string;
    vault: address;
    creator: address;
    timestamp: number;
  }>;

  triples: Map<number, {
    id: number;
    subjectId: number;
    predicateId: number;
    objectId: number;
    vaultFor: address;
    vaultAgainst: address;
  }>;

  signals: Map<address, Map<number, {
    shares: bigint;
    lastUpdate: number;
  }>>;
}

Layer 3: Rust Subnet (Off-Chain Infrastructure)​

Overview​

The Rust Subnet is Intuition's high-performance off-chain infrastructure that indexes on-chain state, resolves off-chain data references, and serves the unified knowledge graph through APIs.

Why Rust?

The Subnet is built in Rust for maximum performance and reliability:

  • Memory safety without garbage collection
  • Concurrent processing for parallel indexing
  • Zero-cost abstractions for efficient data structures
  • WebAssembly compatibility for edge deployment

Core Components​

Event Processing Pipeline​

Processes blockchain events through multiple stages:

// Consumer modes for different processing stages
pub enum ConsumerMode {
    Raw(RawConsumerContext),           // Raw event ingestion
    Decoded(DecodedConsumerContext),   // Event decoding
    Resolver(ResolverConsumerContext), // Data resolution
}

impl ConsumerMode {
    pub async fn process_message(&self, message: String) -> Result<(), ConsumerError> {
        match self {
            ConsumerMode::Raw(context) => {
                self.raw_message_store_and_relay(message, context).await
            }
            ConsumerMode::Decoded(context) => {
                self.handle_decoded_message(message, context).await
            }
            ConsumerMode::Resolver(context) => {
                self.handle_resolved_message(message, context).await
            }
        }
    }
}
  • Real-time event processing through SQS queues
  • Multi-stage pipeline (Raw → Decoded → Resolved)
  • Chain reorganization handling
  • Parallel processing across consumers

Data Resolver​

Resolves and enriches on-chain references with off-chain data:

pub struct ResolverConsumerContext {
    pub client: Arc<dyn BasicConsumer>,
    pub image_guard_url: String,
    pub ipfs_resolver: IPFSResolver,
    pub mainnet_client: Arc<ENSRegistryInstance<Http<Client>, RootProvider<Http<Client>>>>,
    pub pg_pool: PgPool,
    pub reqwest_client: reqwest::Client,
}

impl ResolverConsumerContext {
    pub async fn resolve_atom_data(&self, atom_uri: &str) -> Result<ResolvedData, ConsumerError> {
        match atom_uri {
            uri if uri.starts_with("ipfs://") => {
                self.ipfs_resolver.fetch_content(uri).await
            }
            uri if uri.starts_with("http") => {
                self.reqwest_client.get(uri).send().await?.json().await
            }
            addr if is_ethereum_address(addr) => {
                self.resolve_ens_name(addr).await
            }
        }
    }
}
  • IPFS content resolution via Pinata
  • HTTP/HTTPS metadata fetching
  • ENS name resolution on mainnet
  • Image validation through image-guard service

Database Integration​

Processes and stores structured data for API consumption:

pub struct DecodedConsumerContext {
    pub base_client: Arc<EthMultiVaultInstance<Http<Client>, RootProvider<Http<Client>>>>,
    pub pg_pool: PgPool,
    pub backend_schema: String,
}

impl DecodedConsumerContext {
    pub async fn handle_decoded_message(&self, message: DecodedMessage) -> Result<(), ConsumerError> {
        match &message.body {
            EthMultiVaultEvents::AtomCreated(atom_data) => {
                atom_data.handle_atom_creation(self, &message).await?;
            }
            EthMultiVaultEvents::TripleCreated(triple_data) => {
                triple_data.handle_triple_creation(self, &message).await?;
            }
            EthMultiVaultEvents::Deposited(deposit_data) => {
                deposit_data.handle_deposit_creation(self, &message).await?;
            }
        }
        Ok(())
    }
}
  • PostgreSQL with Hasura GraphQL layer
  • Real-time event storage and indexing
  • Complex relationship mapping
  • Optimized queries with database migrations

Data Pipeline​

The Subnet implements a sophisticated data pipeline:

API Layer​

The Subnet exposes multiple API interfaces:

GraphQL API

query GetAtomWithTriples {
  atom(id: "123") {
    uri
    vault {
      totalStaked
      sharePrice
    }
    triplesAsSubject {
      predicate { uri }
      object { uri }
      signal
    }
  }
}

REST API

GET /api/v1/atoms/123
GET /api/v1/triples?subject=123
POST /api/v1/search
WebSocket /ws/subscriptions

Real-time Subscriptions

subscription OnAtomUpdate {
  atomUpdated(id: "123") {
    signal
    lastActivity
    vaultBalance
  }
}

Data Flow Architecture​

Transaction Lifecycle​

Understanding how data flows through the system is crucial for developers:

  1. User Action → SDK creates transaction
  2. Network Processing → L3 validates and includes in block
  3. Protocol Execution → Smart contracts update state
  4. Event Emission → Contracts emit events
  5. Subnet Indexing → Events processed and indexed
  6. Data Resolution → Off-chain data fetched and cached
  7. API Response → Unified data served to applications

Average End-to-End Latency: < 2 seconds

State Synchronization​

The system maintains consistency across all layers:

interface SyncStrategy {
  // Real-time sync for recent blocks
  realtimeSync: {
    blockLag: 2,
    confirmations: 1,
    retryPolicy: ExponentialBackoff
  };

  // Batch sync for historical data
  batchSync: {
    chunkSize: 1000,
    parallelWorkers: 10,
    checkpointInterval: 100
  };

  // Consistency checks
  validation: {
    stateRootVerification: true,
    periodicReconciliation: '1h',
    alertThreshold: 0.001 // 0.1% discrepancy
  };
}

Performance Optimizations​

Caching Strategy​

Multi-layer caching for optimal performance:

L1: CDN Edge Cache

  • Static content
  • Popular queries
  • 5-minute TTL

L2: Redis Cache

  • Query results
  • Session data
  • 1-hour TTL

L3: Application Cache

  • Computed values
  • Aggregate data
  • 24-hour TTL

Query Optimization​

The Subnet employs sophisticated query optimization:

  • Query planning - Analyzes queries to determine optimal execution path
  • Parallel execution - Breaks queries into independent subqueries
  • Index utilization - Maintains specialized indexes for common patterns
  • Result streaming - Streams large results instead of loading all at once

Security Architecture​

Smart Contract Security​

  • Audited contracts by leading security firms
  • Upgradeable proxies with time-locked admin functions
  • Rate limiting on sensitive operations
  • Emergency pause functionality

API Security​

  • JWT authentication for protected endpoints
  • Rate limiting per API key
  • DDoS protection at edge layer
  • Input validation and sanitization

Data Integrity​

  • Merkle proofs for on-chain data
  • IPFS content addressing for immutable references
  • Signature verification for attestations
  • Consensus validation across indexer nodes

Development Patterns​

For developers building on Intuition, we recommend:

  1. Use the TypeScript SDK for all contract interactions
  2. Query via GraphQL for complex data needs
  3. Subscribe to WebSockets for real-time updates
  4. Cache aggressively at the application layer
  5. Batch operations when possible to reduce costs

Example: Creating and Querying Atoms​

// Using the SDK to create an atom
const atom = await intuition.createAtom({
  uri: 'ipfs://QmXoypizjW3WknFiJnKLwHCnL72vedxjQkDDP1mXWo6uco'
});

// Staking on the atom
await intuition.stake(atom.id, parseEther('100'));

// Querying via GraphQL
const query = gql`
  query GetAtom($id: ID!) {
    atom(id: $id) {
      uri
      creator
      vault {
        totalStaked
        holders
      }
      signal
    }
  }
`;

const result = await client.query({
  query,
  variables: { id: atom.id }
});

Deployment Architecture​

Infrastructure Setup​

Network Nodes

  • Distributed globally
  • Auto-scaling groups
  • Multi-region failover
  • 99.99% uptime SLA

Subnet Infrastructure

  • Kubernetes clusters
  • Horizontal pod autoscaling
  • Rolling deployments
  • Blue-green releases

Data Storage

  • PostgreSQL with replication
  • Redis sentinel clusters
  • IPFS pinning services
  • S3-compatible object storage

Next Steps​

Ready to start building? Explore these resources:

Smart Contracts - Deep dive into Protocol contracts

GraphQL API - Learn the query interface

SDK Guide - Start building applications

Deployments - Contract addresses
